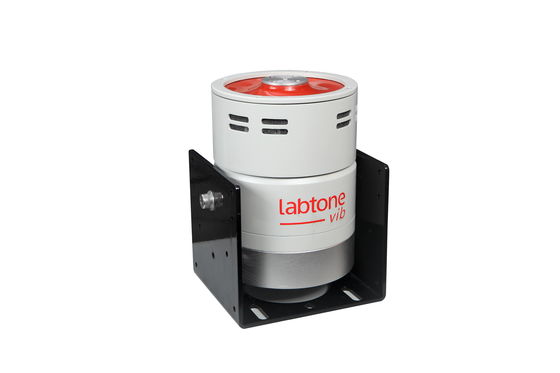

Electrodynamic Vibration Shaker Designed for Calibration and Testing in Scientific Research Education and Industrial Applications

ISTA IEC Standard Small Electrodynamic Shaker For Small Lightweight Parts Vibration Test

ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.

 Features

• Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
• Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
• Apply to the basic test of vibration engineering education equipment, etc.

Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor.

Specifications

Model: ET50

Rated Sine Exiting Force: 50kg.f(500N)

Rated Random Exiting Force: 40kg.f(400N)

Frequency Range: 5-3800Hz

Max. Acceleration: 50G

Max. Amplitude: 12mm

Max. Velocity: 1.2cm/s

Armature Mass: 1kg

Machine Dimension: W360*D300*H350mm

Cooling Type: Forced cooling

Power Amplifier: VA05

Output Power: 500W

Output Voltage: 12VRMS

FrequencyRange:1-7KHz

Electrical Supply: Power AC220V ±10% 50Hz

Working Principle:
